Portfolio design system

Checked, not estimated.

Project: bytenielle.com
Type: Self-initiated
Role: Brand, design system and build
Built with: Figma, HTML and CSS, Claude
Year: 2026
Status: Live. You’re using it.

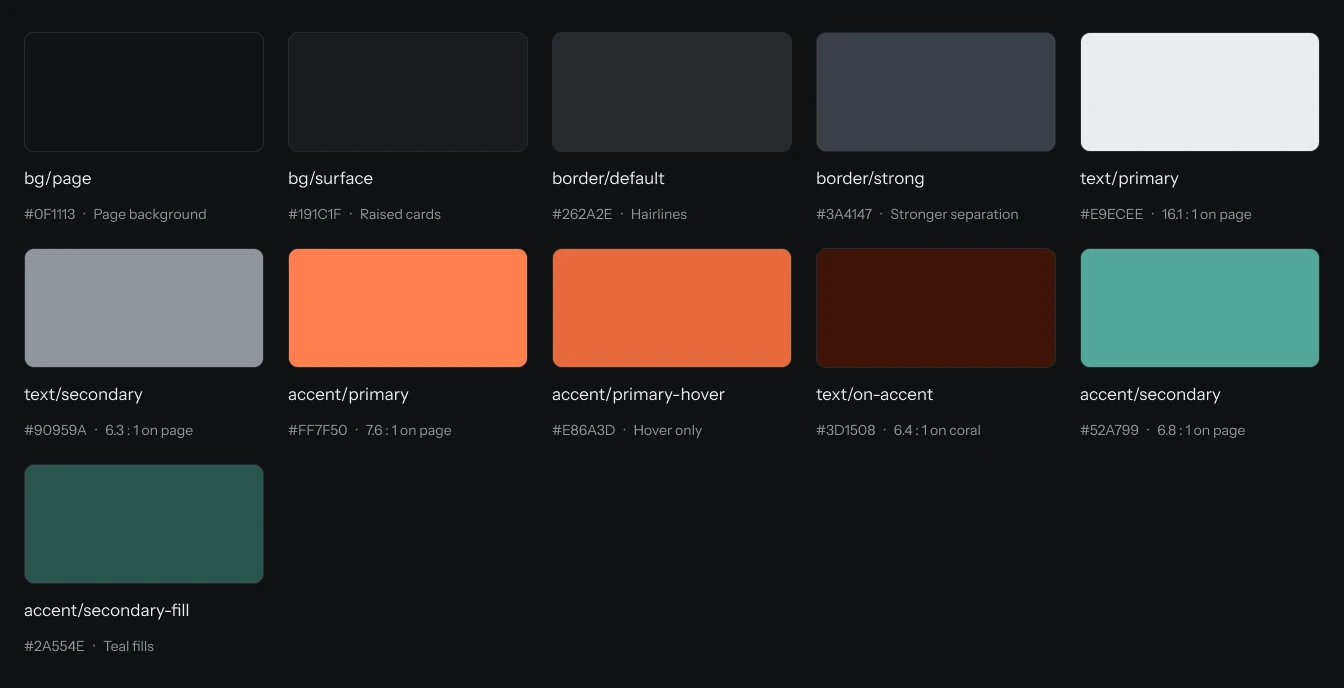

Colour tokens in the Figma library, with measured contrast ratios Open full size →

TLDR

I built this site like a product: brand guide, then design system, then pages. On mobile every page scores 100 in Lighthouse for accessibility, and axe finds no WCAG 2.2 AA failures. I render and measure before I trust a value.

Giving coral the room

Pulling the base cool made coral the only warm thing on the page.

The first dark base had a brown undertone, and beside coral it read 1970s. Cooling it left coral as the one warm colour. Teal is a guest inside case studies, and no view gets more than two accents.

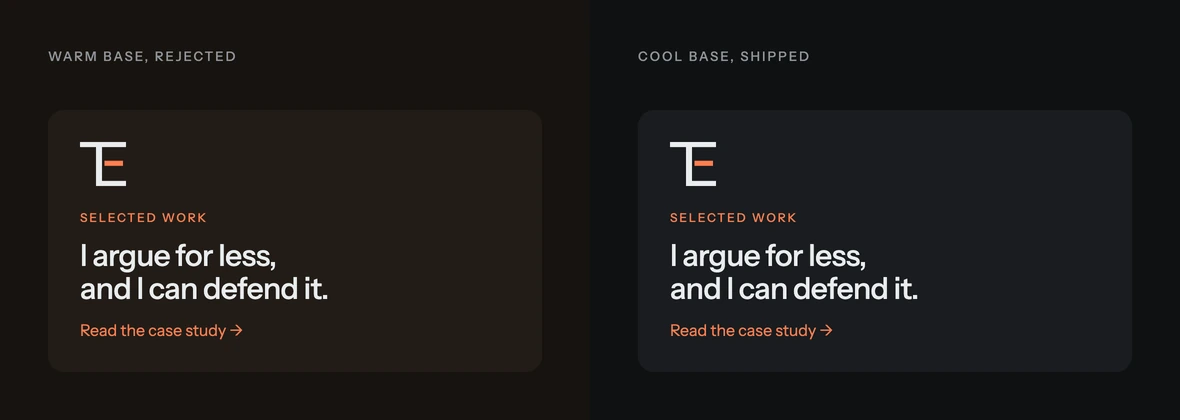

The same card twice, with the monogram, a coral eyebrow, the headline I argue for less, and I can defend it, and a coral link. On the left, the rejected warm base with a brown undertone, where the coral sinks into the background. On the right, the shipped cool base, where coral is the only warm colour and stands out. — Rebuilt from the recorded values: only the base colour changes

Drawing a mark that survives small

The mark changes construction below 40px, because rendering showed where it broke.

T and E share one stem; the coral middle arm floats free. Rendered at real sizes, the arm read as a stray dash, so I widened it and closed the gap. Below 40px the gap still falls under two pixels, so the small version attaches it.

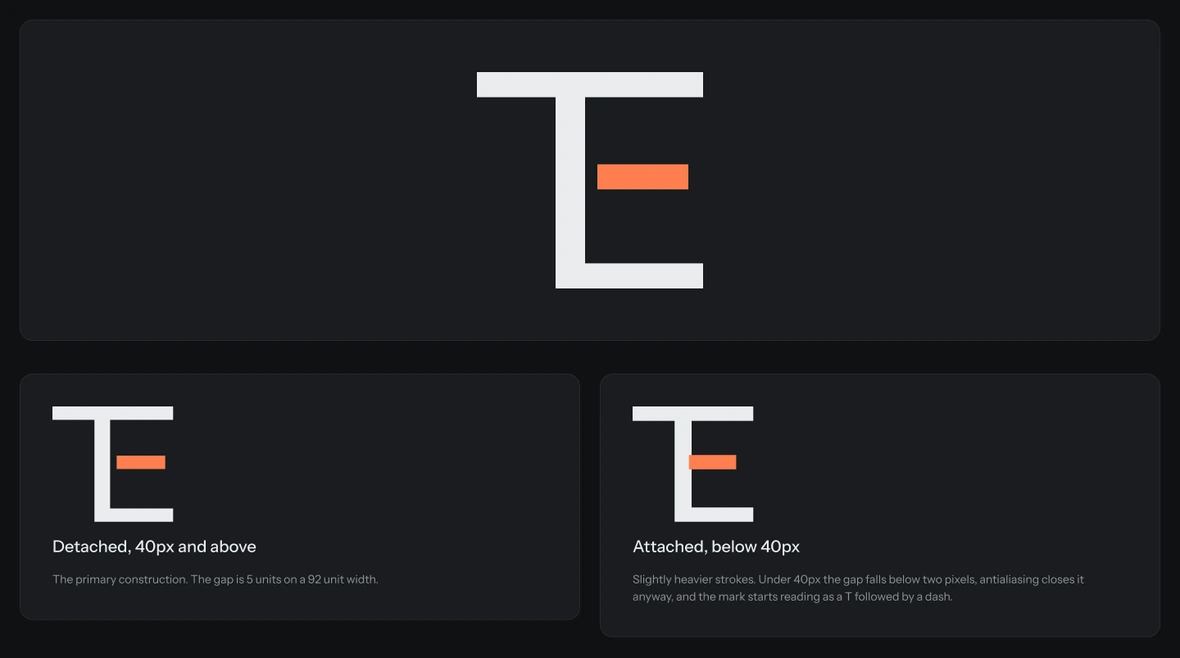

The fused TE monogram drawn large, a single stem shared by both letters with the E's middle arm in coral, floating free. Below it, the two constructions side by side: detached, for 40px and above, and attached with slightly heavier strokes, for below 40px, where a gap under two pixels would close anyway and read as a T followed by a dash. — The mark and its two constructions, from the Figma brand guide

A system you can’t misuse

Raw colours are hidden, so the only thing anyone can pick is a colour with a job.

The Figma library holds 48 variables, 10 text styles and 18 components. The first estimates put coral at 7.8:1 and teal at 7:1; measured, they’re 7.6 and 6.8, which drops teal below AAA. In Figma the raw palette is hidden from publishing, so anyone reaching for coral gets accent/primary, though so far that’s only been me.

Why a check beats being careful

Being careful kept failing, so a script now checks the guides against the build.

Four documents and a Figma copy describe this build. In one day, six claims were stale in one copy and right in another. Now a check runs before every commit. Claude wrote the script; deciding what counts as wrong was mine. I broke the first five rules on purpose.

Two things the guide check caught
Result	Check	What it found
drift	Claims corrected, in pages and sources	A source document still carried an adoption figure I had already taken off the page
drift	The Figma copies, against their last sync	The Figma brand guide said ten social cards; the build had eleven
ok	Eight other checks	Facts, links, paths, em dashes, colours, cut phrases, section status, the skill copy

Two catches on 3 October 2026, both fixed before the commit

The numbers

Measuring found two problems, and fixing them didn’t cost the intro.

100accessibility, all 13 pages
0WCAG 2.2 AA failures in axe
99+mobile performance

The first run scored the home page 74: the hero drawing was a megabyte of vector. As WebP from the same file it’s 66KB and looks identical, and the page scores 99 with the intro still playing. axe caught one table a keyboard couldn’t reach on a phone. Fixed.
